Urgency Instructions and Clearances

Introduction

This article is intended to provide information on the use of time-critical phraseology based on ICAO Doc. 9432 Manual on Radiotelephony and the UK Manual of Radiotelephony CAP 413.

It also examines controllers’ and flight crews’ expectations regarding the use of “now”, “immediately” and “expedite” in ATC clearances, and identifies associated safety issues.

The advice provided in this article shall not take precedence over applicable rules and local procedures.

Reasons for use

Controllers are trained to plan the situation well in advance to achieve a smooth flow of air traffic. This sometimes means that the clearances have to be complied with without delay.

There are also situations where things do not happen as intended, and prompt action becomes necessary. Examples of such situations are:

Aircraft being unable to maintain the assigned level due to turbulence
Emergency descent
Unexpected aircraft maneuver (e.g. due to weather avoidance)
Inadequate coordination between ATS sectors or units
Wrong ATC clearance or instruction (e.g. due to situation misjudgment)
ATC clearance or instruction not properly complied with, including delayed pilot action
Airspace infringement
Runway incursion

The most commonly used words to indicate that a situation requires prompt action for safety reasons are “now”, “immediately” and “expedite”.

The use of “now”

The word “now” is used to indicate that the execution of the instruction is expected to commence at once to:

Resolve or prevent a potential conflict
Increase the precision of a maneuver (e.g. when the controller assists in case of compass failure)

Example 1: Using “now” to prevent a conflict.

The use of “immediately”

The words “immediate” or “immediately” may be used:

When clearing an aircraft for an immediate departure
When canceling a take-off clearance in conjunction with the word “Stop”
When a pilot is given a lateral or vertical clearance as avoiding action in respect of potential traffic conflict

The use of “immediately” is always associated with urgency due to a situation that is or may become hazardous to safety.

Both ICAO Doc 9432 and UK CAA CAP 413 recommend using the word “immediately” in conjunction with the phrase “due traffic” when instant action is required by a pilot.

It communicates the reason without giving unnecessary additional detail. The pilot is expected to comply as quickly as possible.

Due to the urgency of the situation, the controller may explain the reasons for the instruction after the safety issue has been resolved.

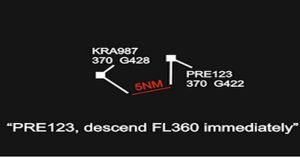

Example 2: Using “immediately” to solve a conflict.

The use of “expedite”

The word “expedite” is used when a higher-than-normal rate of climb or descent is required. It provides a simple way to achieve vertical separation because the use of single-word instruction reduces the chances of an incorrect readback. The use of “expedite” implies that the action should start “now”.

The controller’s expectations when the word expedites is used are that climbing aircraft will maintain the best rate of climb possible and that descending aircraft will achieve vertical speeds between 2000 fpm and 3500 fpm.

When using “expedite” in respect of the rate of climb or descent, a controller should remember that such an instruction is not a specific vertical speed.

For climbing aircraft, even the best possible rate of climb may not be sufficient to ensure a required traffic separation and for descending aircraft the chosen rate of descent is at the pilot’s discretion and the degree of uncertainty about the vertical position will grow as time passes.

Examples of proper and improper use of “expedite”:

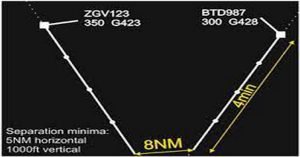

Example 3: Proper use – any rate of descent above 1500 ft/min will be sufficient to ensure separation.

Example 4: Improper use – the safe outcome depends on the rate of descent chosen by the flight crew – 3000 ft/min will be enough while 2000 ft/min will be insufficient.

Another example of the use of the word “expedite” in a time-critical situation is when an aircraft is requested to vacate (or to cross) a runway and to do so without delay. ICAO Doc.

4444, 7.10.3.1 states: When necessary or desirable to expedite traffic, a landing aircraft may be requested to [..] d) expedite vacating the runway.

However, caution should be used when issuing this instruction to a landing aircraft because the pilot may be unable to assess the extent of the implied urgency and may be indirectly encouraged to attempt to exit the runway at an inappropriately high speed or to continue along the runway to the first (but distant) exit at an inappropriately high speed which may then lead to directional control difficulties if ground speed is not reduced to that appropriate to the turn-off.

The timing of any such instruction to landing traffic should also be considered carefully. When given to traffic whilst it is still airborne, it may indirectly encourage a long landing and when given to any aircraft whilst still at a high ground speed during the landing roll, it may represent a distraction to the pilot(s) at a critical time.

ICAO Doc. 4444 is specific regarding the phraseology to be used when a runway crossing clearance which must be actioned quickly is issued: EXPEDITE CROSSING RUNWAY (number) TRAFFIC (aircraft type) (distance) KILOMETRES (or MILES) FINAL.

“Now” and “immediately”

The degree of urgency communicated by the words “now” and “immediately” is open to different interpretations by different people even though the exact meaning of the words “now” (at once) and “immediately” (without delay) are essentially the same

Some of the reasons for this are:

The degree of urgency which gives rise to their use is a perception on the part of the user of the word. For example, it is not possible to be precise about exactly how many radar scans need to occur before it should be considered that an “immediate” instruction is not being complied with.
Different aviation professionals (pilots, controllers, and authority experts) may view the same situation from different perspectives.
Aviation regulations and procedures differ from country to country and between aircraft operators and in both cases are subject to change.

Although ICAO Doc 4444 (Chapter 12) and ICAO Doc 9432 use only the word “immediately” to imply urgency, some national guidance differs.

Despite the dictionary equivalence of the two words, UK CAA CAP 413 distinguishes between “now” and “immediately” as follows:

“If an ATS unit wishes to indicate that the instruction or clearance must be complied with at once, the controller’s message will include the word ‘now’ or ‘immediately’.

The use of the word ‘now’ indicates that the instruction should be complied with by normal aircraft operating procedures, but without delay.

Use of the word ‘immediately’ indicates a further degree of urgency exists (e.g. to avoid flight into terrain or restricted airspace, or for the provision of collision avoidance, see Chapter 5 Paragraph 1.6.4 Avoiding Action Phraseology).

In such circumstances, the pilot should take action to comply with the instruction as soon as practicable, subject to the safety of the aircraft.”

The word “now” is sometimes used by a controller because it is a shorter word. It is possible that the use of “immediately” rather than “now” would result in sharper turns, higher vertical speeds,

and less delay in response but in the absence of harmonization internationally and a minimum requirement for competence in the English language which is somewhat less than fluent, it must be accepted that a distinction between the degree of urgency between “now” and “immediately” may be inferred in either direction or not at all.

Interpretation by pilots and controllers

Both pilots and controllers recognize that the use of either “immediately” or “now” indicates that the user believes that safety may be compromised.

Controllers providing service in which traffic separation is prescribed will see safety as compromised if there is an (imminent) loss of separation.

However, prescribed separation minima may vary both within and between countries and this can lead to different controller behavior (see Example 5).

Example 5: This situation will be considered safe if the horizontal separation minimum is 5NM. If the minimum is 10NM however, an incident investigation may follow.

Depending on local regulations and other factors it is possible that this situation would be assessed as a serious incident since there is neither vertical nor horizontal separation between the aircraft and at least one of the separation minima (vertical) has been breached by more than 50%).

Pilots are trained to recognize that safety has been compromised when there is a TCAS RA but when they are relying on visual separation, their perception of the point at which safety has become compromised may vary.

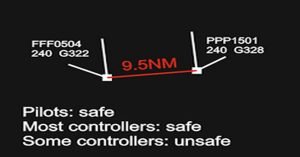

Example 6: Although controllers would consider the situation as a loss of separation, the pilots would most likely assume that there is no safety hazard, especially in VMC and when there is visual contact with the other aircraft. Also, there will be no TCAS RA.

Safety Considerations

The use of urgency phrases has some safety aspects. There are situations where improper use can lead to or contribute to a loss of safety. Some potential scenarios for this are:

Reluctance to use urgency instructions – a controller may be unwilling to use urgency phrases. They may be unsure the situation demands it or they may think that since urgency phrases do not imply exact restrictions, their use is just a waste of time. This may lead to pilots not responding promptly enough.
“Expedite” undefined – since “expedite” does not assign a specific vertical speed the safe outcome may depend on providence (as shown in example 4 above).
Differences in training and documentation – controllers and pilots are trained at different facilities, at different times, and in different countries. This can easily lead to a situation where the controller expects a particular response from a pilot and/or the latter gets a wrong impression of the expectations of the former. Precious time can be wasted in a time-critical situation.
Line up, be ready for immediate departure – ICAO Doc.9432 states that it is acceptable to issue the line-up instruction and the takeoff clearance separately. It is possible, however, that the controller gets distracted, or the frequency gets blocked (e.g. by an unexpected lengthy transmission). In this case, there is an aircraft on the short final and another one lining up. A possible outcome here is a missed approach that could have easily been prevented.
Situation misjudgment concerning an immediate departure – a controller may assess the traffic situation wrongly due to the many complex factors that need to be considered (speeds and positions of the aircraft, the absence or restricted availability of radar equipment). A contributory factor here can be that the procedure for an immediate departure is not adequately specified in applicable procedures.
Pilots accept an immediate takeoff clearance when the aircraft is not ready – the reasons can include misunderstanding the degree of urgency implied or wrongly assessing the readiness of the aircraft.

Recommended practices and mitigation measures

The advice contained in this section should not take precedence over applicable regulations and procedures.

Adherence to standard phraseology is advised. During an investigation, official documentation is considered more important than unwritten ‘custom and practice’ however well-established it has become.
Time-critical RTF instruction should be conveyed clearly and unambiguously.
Plain language explanations of the reason for issuing a time-critical instruction whether immediately, and without a break, before or after the actual instruction, may result in a pilot failing to grasp the instruction contained in the transmission even though they understood that it had been directed at them. It is recommended that the time-critical instruction should be issued first and that any explanation is provided only when time permits and other circumstances are appropriate.
Good RTF discipline should be employed and expected in return. Any non-specific acknowledgments of time-critical instructions by pilots should not be taken as ‘message-is-received-and-correct-action-will-follow’ by a controller but must be followed up to obtain adequate confirmation.
For best results “expedite” should be used when the level difference between the aircraft is 4000ft or less so that the descending aircraft can pass the conflicting level within two minutes. In case of an instruction to expedite climb, the likely performance of the aircraft type should be taken into account and the instruction should be issued sufficiently ahead of a potential conflict that there will still be time for corrective action should the need arise.
The applicable procedures should fully describe the procedure instructions in respect of an immediate takeoff.
The line-up instruction and the takeoff clearance should be issued in a single transmission whenever possible.
Flight crews should not accept an immediate takeoff clearance unless they and the aircraft are ready.
